Kloubový nakladač Everun EREL1000

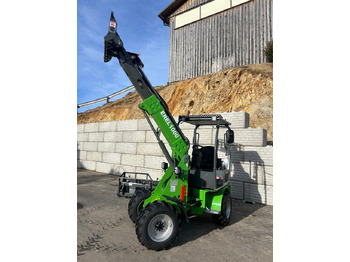

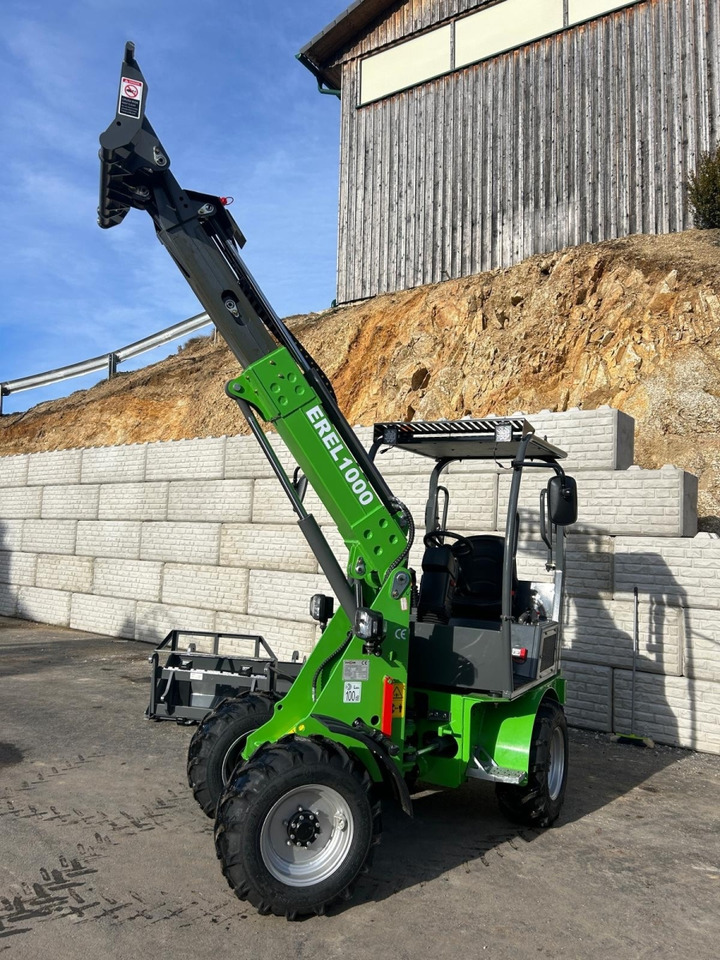

Electric telescopic yard loader EREL1000 – now even better!

Benefit from more steering angle and a higher lifting height! The EREL1000 is a TOP device for everyone who wants maximum efficiency and flexibility.

Stock:

1 unit without cabin

2 units with cabin

Technical data:

Max. rated load: 900 kg

Primary loading height: 3053 mm

Maximum dumping height: 2714 mm

Secondary loading height: 3620 mm

Maximum climbing ability: 20°

Oscillation angle: 8°

Overall dimensions (L×W×H): 3822 * 1270 * 2380 mm

Bucket width: 1200 mm

Wheelbase: 960 mm

Min. ground clearance: 210 mm

Own weight: 2360 kg

Battery model no.: 3-EVF-200A

Nominal capacity (3 hours): 200 Ah

Number of battery groups: 12

Nominal voltage: 72 V

Working time: 4 hours

Engine no.: YQP5.72AF.48P

Voltage: 72 V

Power: 5000 W

Displacement (ml/r): 14

Tire type: 29*12.50-15

Tire operating pressure (MPa): 0.3

Tire quantity: 4

Type of steering hydraulic system: Fully hydraulic steering system

System pressure: 16 MPa

Type of steering pump: External gear pump

Steering cylinder bore: Ø65 mm

Warranty:

1 year warranty on spare parts.

Price details:

The price stated refers to the model without cabin and with bucket.

Pallet fork: €490 net plus VAT

Cabin: €990 net plus VAT

Delivery time: January 2025.

Secure your TOP device now!

Don’t miss this opportunity to make your work processes more efficient – the EREL1000 electric telescopic yard loader is waiting for you!
