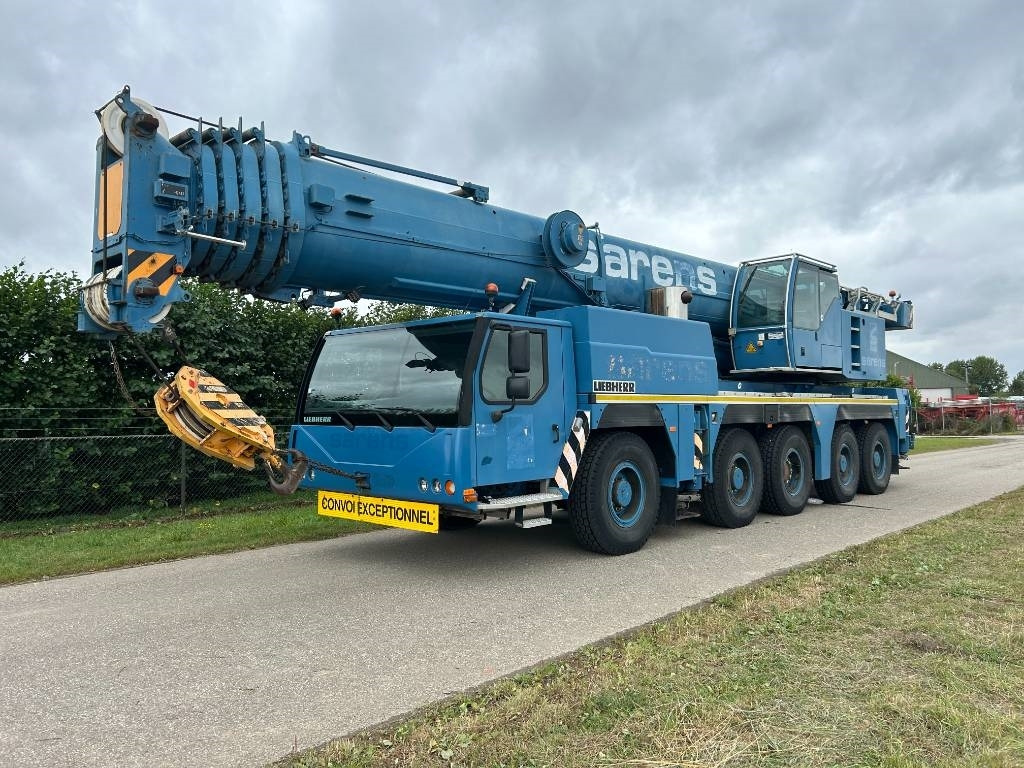

Univerzální autojeřáb Liebherr LTM 1250-5.1

Main Data:

Model / Type of crane LTM 1250-5.1 / AT

Max. capacity (75%) / max. loadmoment (tm) 250 t at 3 m / 777 tm

Year / First taken into operation 2016 / 07.09.2016

Working hours chasis (h) / date 1313 h / 29.06.2021

Working hours superstructure (h) / date 4281 h / 29.06.2021

Mileage (km) / date 31288 km / 29.06.2021

Data Chassis:

Truck chassis type / Width A56B / 3,00 m

Carrier cabin wide

Aircondition existing / available

Additional heating existing / available

Engine (make/type) / hp / kW Liebherr D 946 A7-04 / 544 / 400

Engine exhaust-stage IV / SCR

Gearbox manufacturer / Type ZF / SG / AS-Tronic

Crane driveable from below

Drive and steering 10 x 6 x 10 / 1/2/3/4/5.

Type of axle suspension Niveaumatic

Size of wheels 16.00 R 25

Sparewheel 0

Controlled from support Bluetooth, above

Support basis L/B 9,31 m x 8,30 m

Combination box, for slings and support timber existing / available

TÜV / SP-acceptance validity 12.21 / 06.22

Data Superstructure:

Telescopic boom / boom sections 13,1 - 60 m / 6

Fixed Fly jib / Adapter TNZF 8 - 50 m / 0-45° hydr.

Fixed Fly jib / Adapter TS 4 - 46 m / 0°

No. of winches 1

Winch 1 cable pull / cable Ø 105 kN / 23 mm

Hookblocks / Crane hook (t) 108 t (DH) / 10,5 t

Counterweight (t) 68 t / 20 t

Working area limitation existing / available

Emergency operation of crane hydraulic available / existing

Two working floodlights at pivot section electrically adjustable existing / available

Aircondition existing / available

Safe load indicator Liebherr LICCON 2 / 75 %

UVV-acceptance validity n.v

Other features:

emergency shutdown button – carrier cabin and crane cabin; flight warning light switchable between LED-continuous light and LED flash light; reversing light fixed on the rear-view mirror; working spotlight at superstructure rear

Subject to change.

Subject to prior sale.

Complete data sheet on request.
