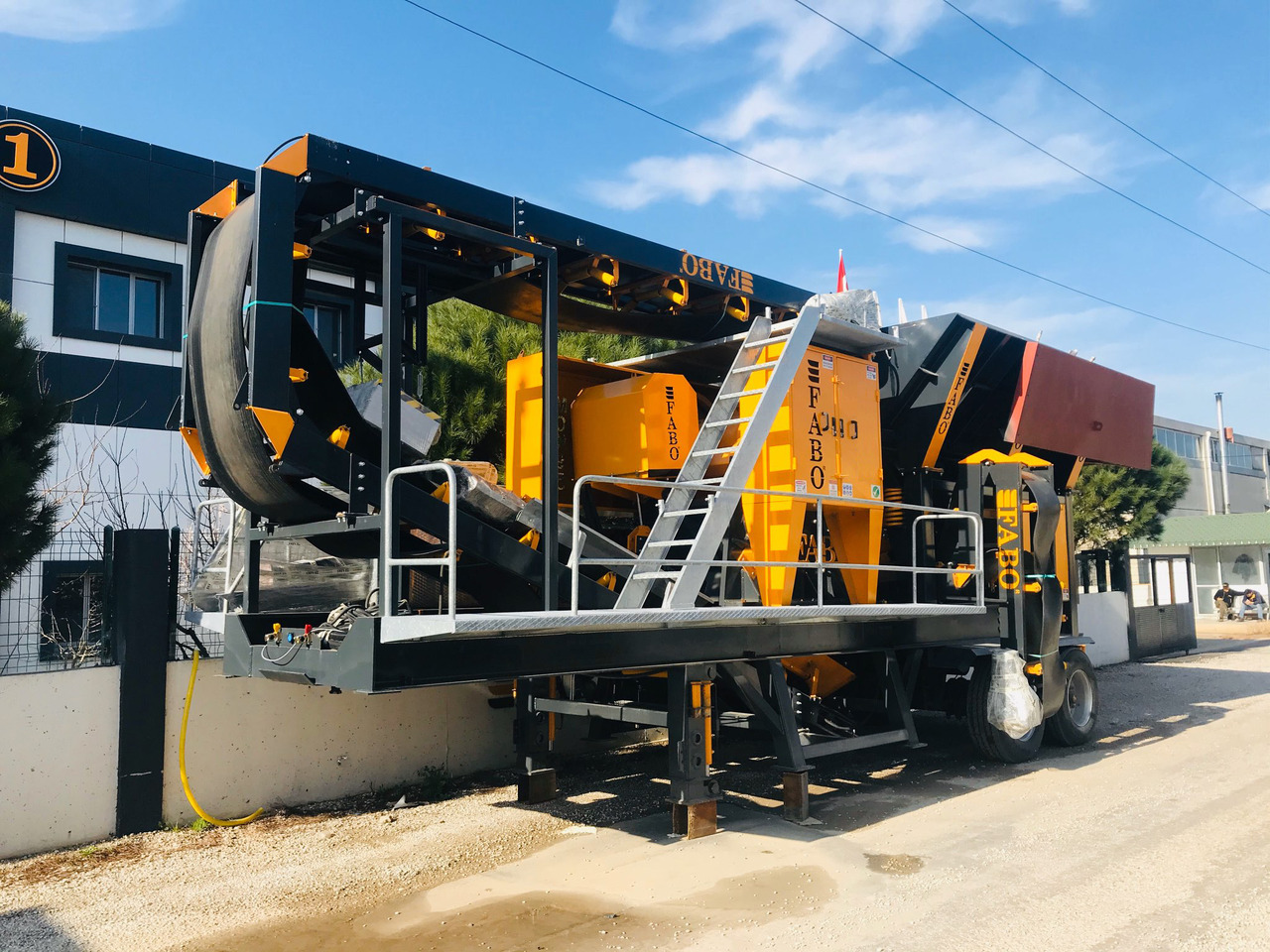

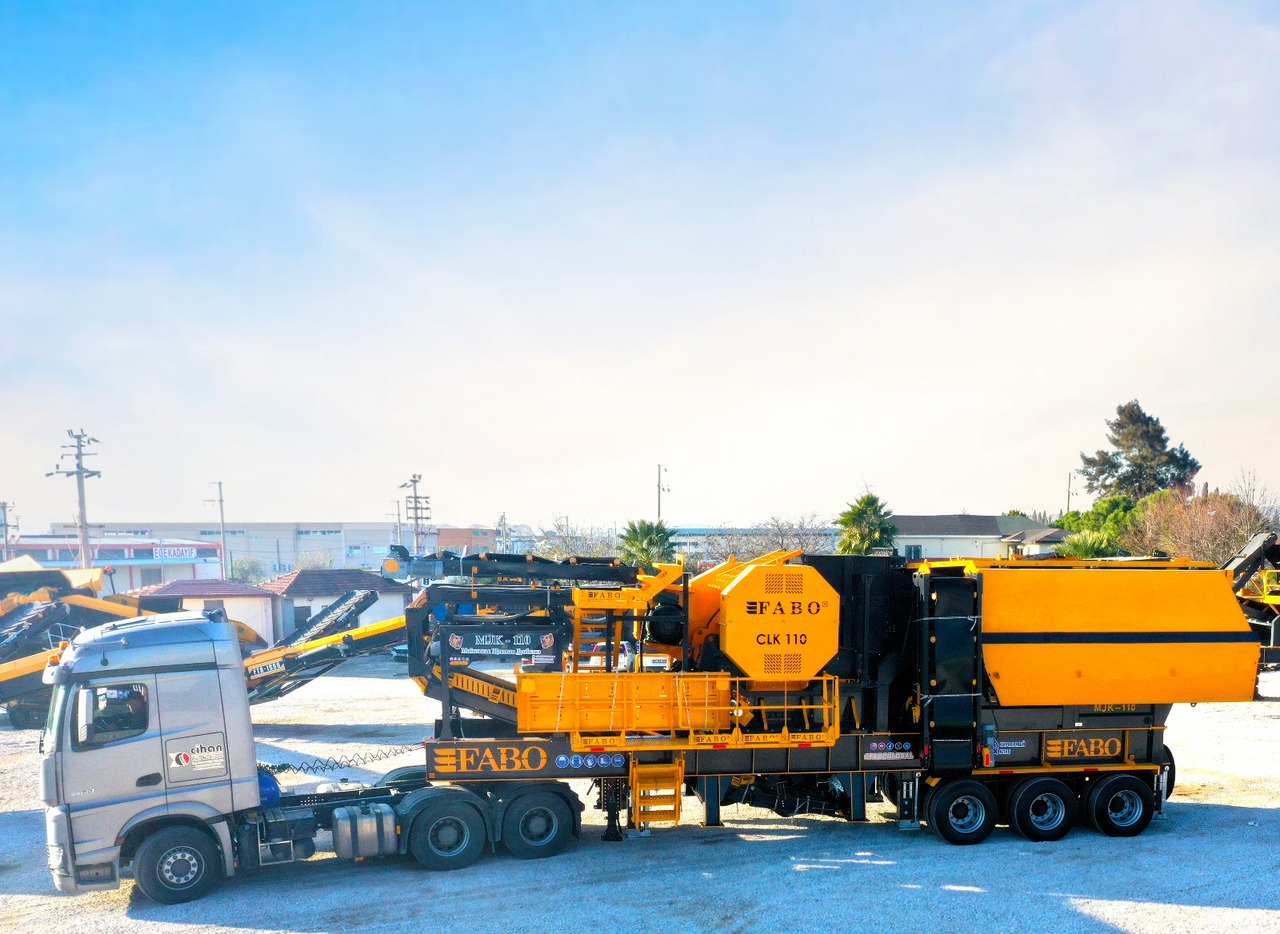

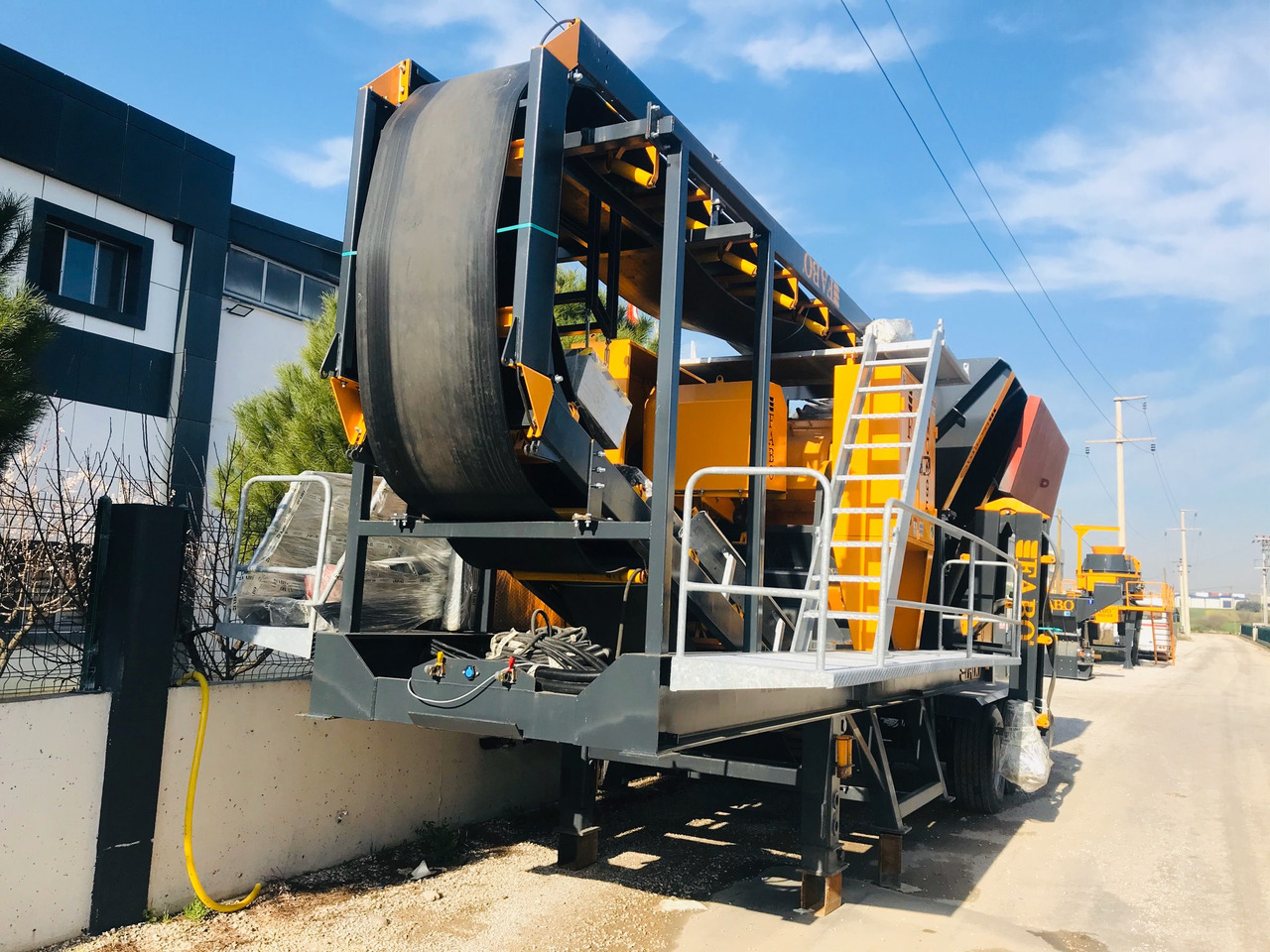

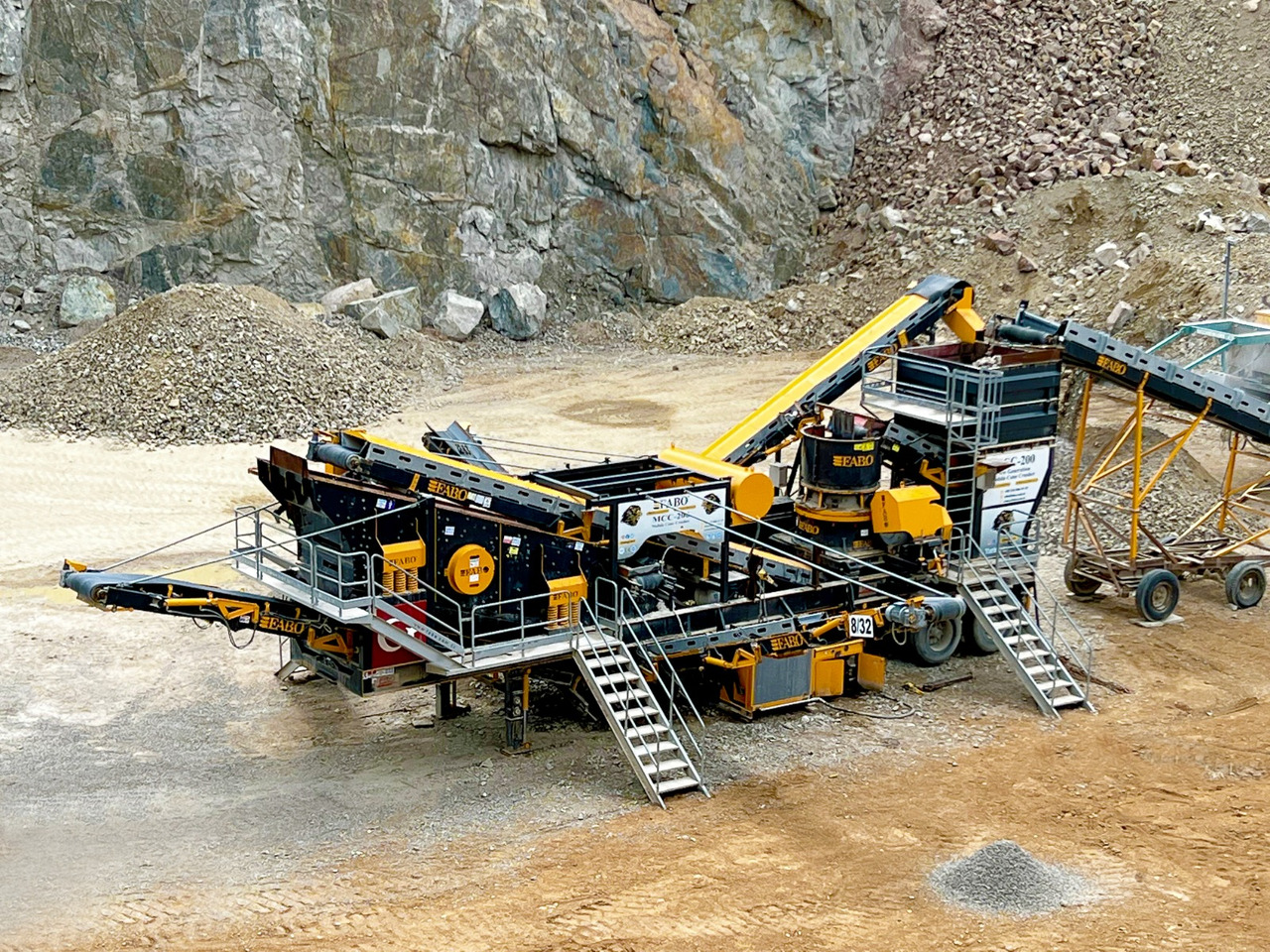

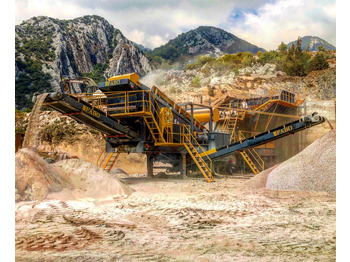

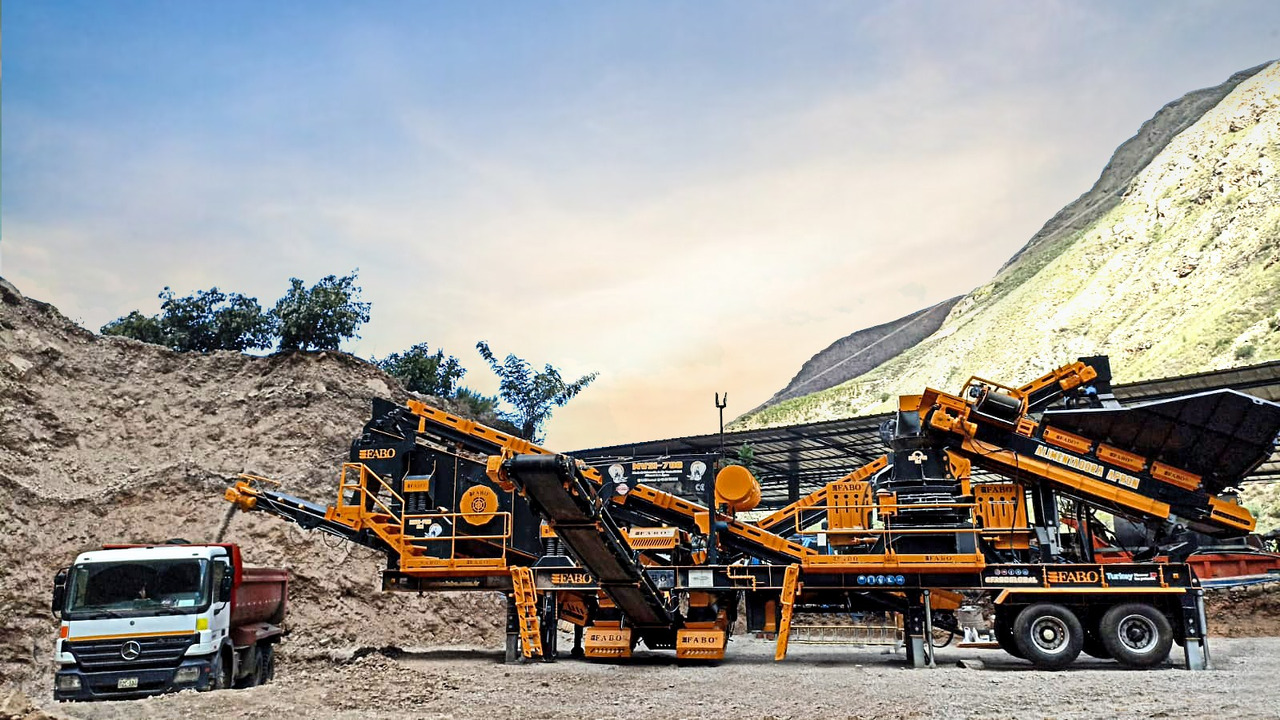

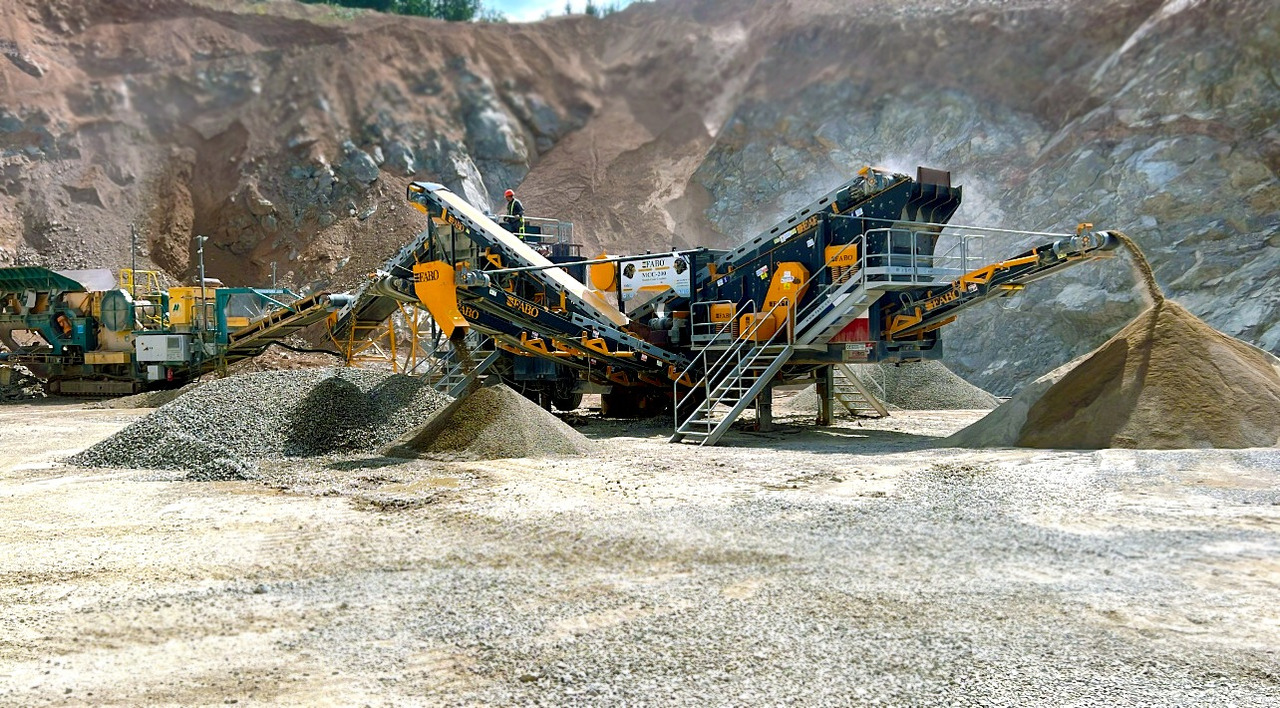

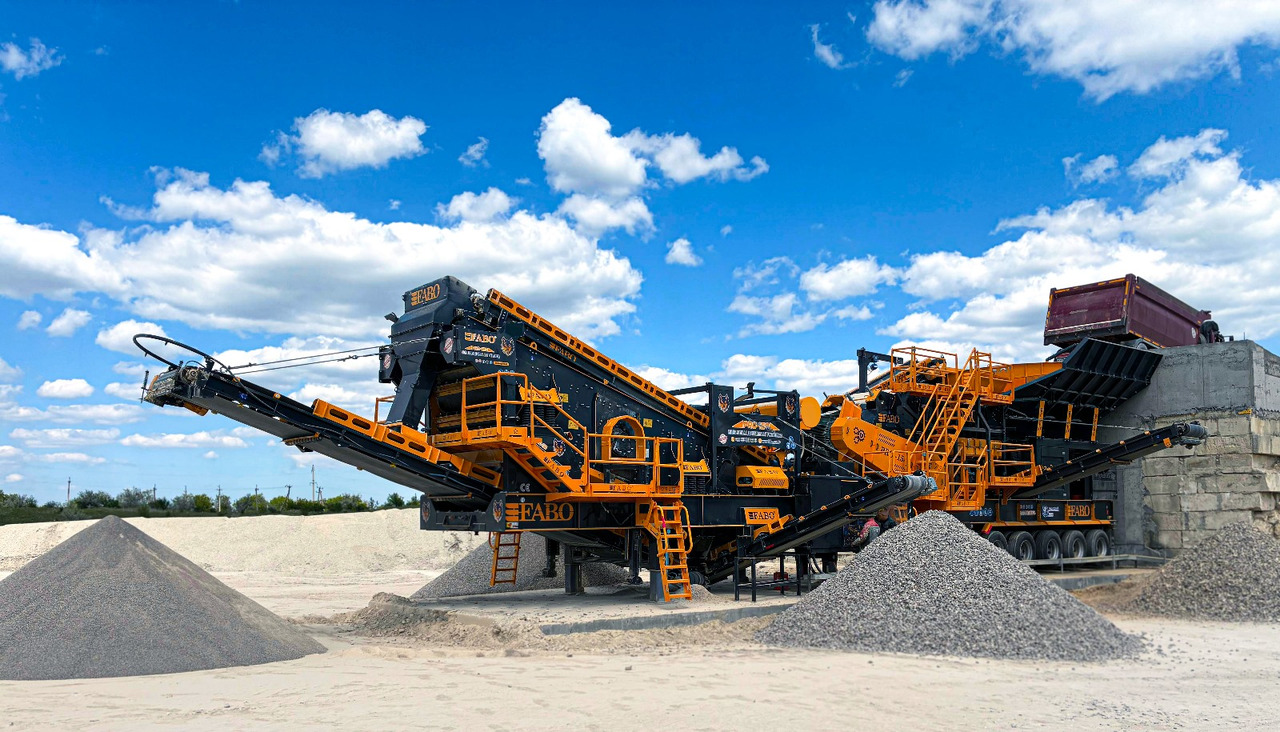

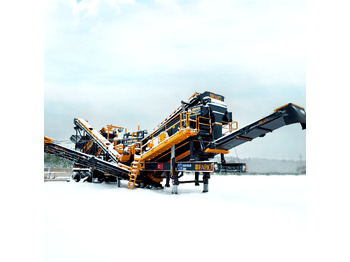

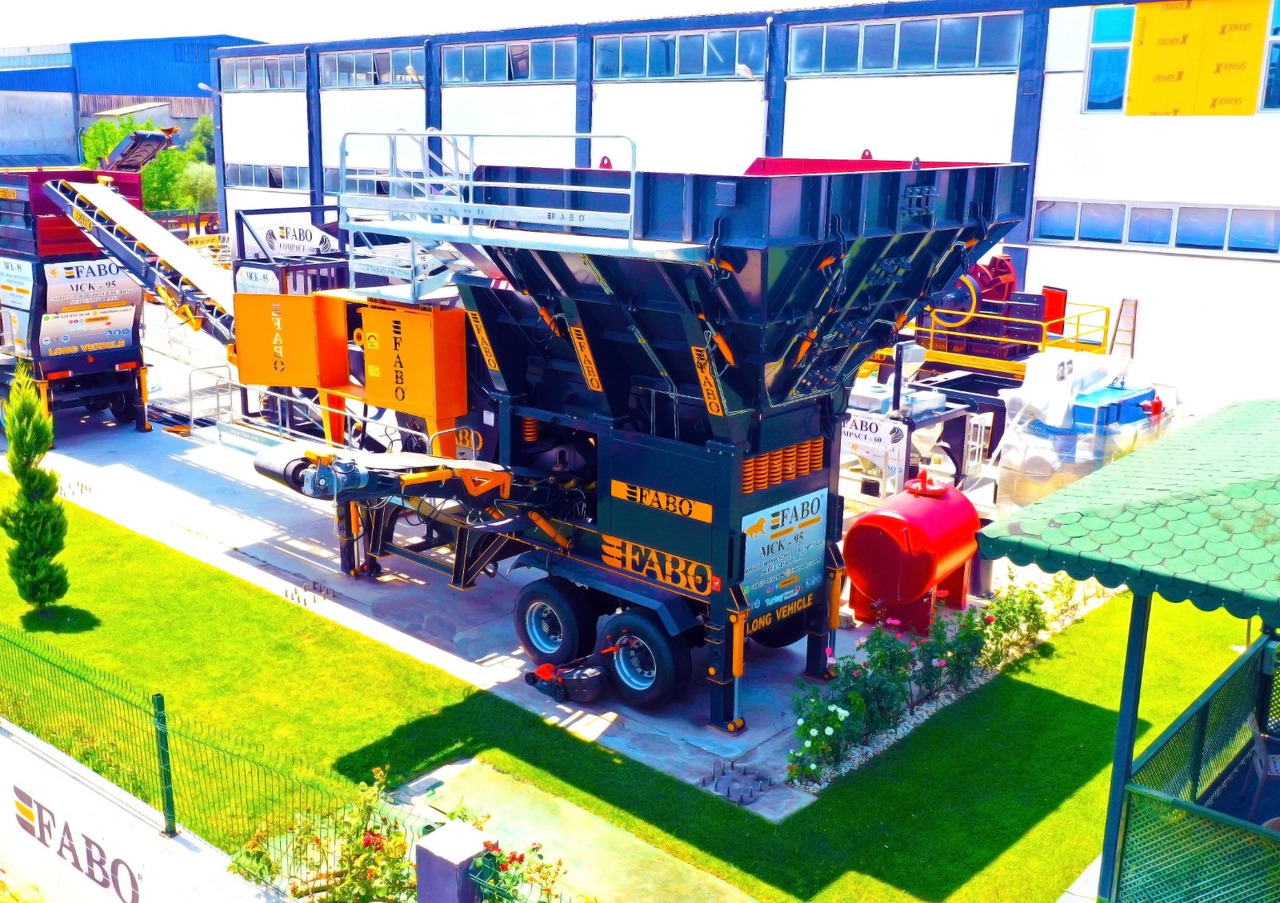

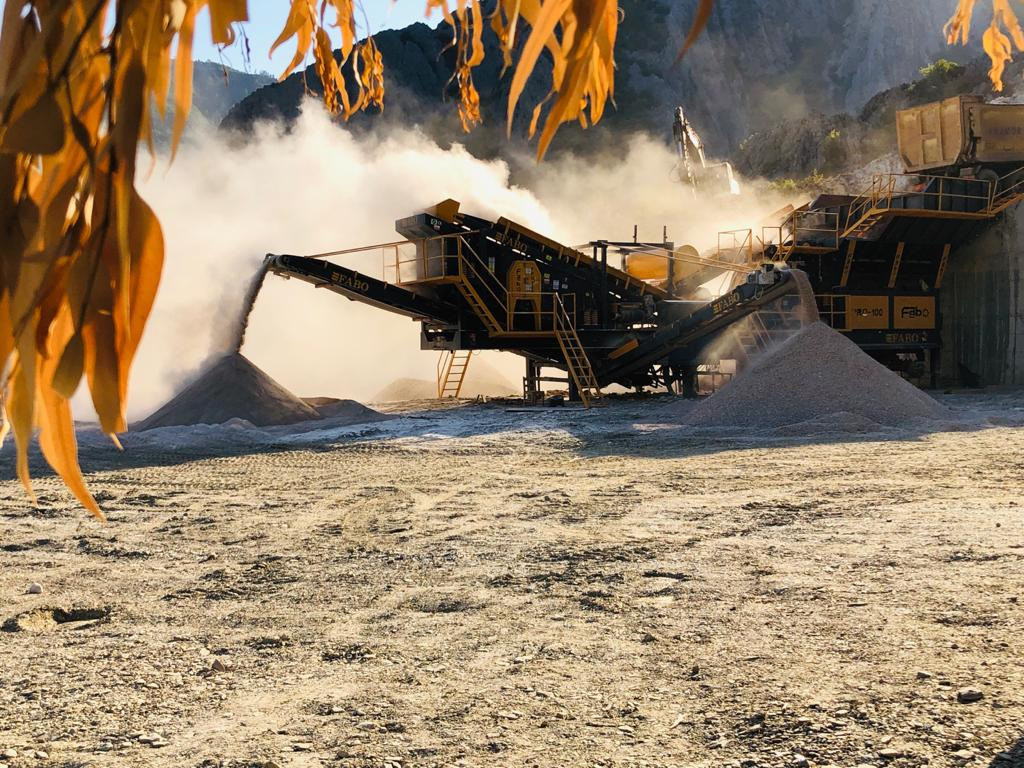

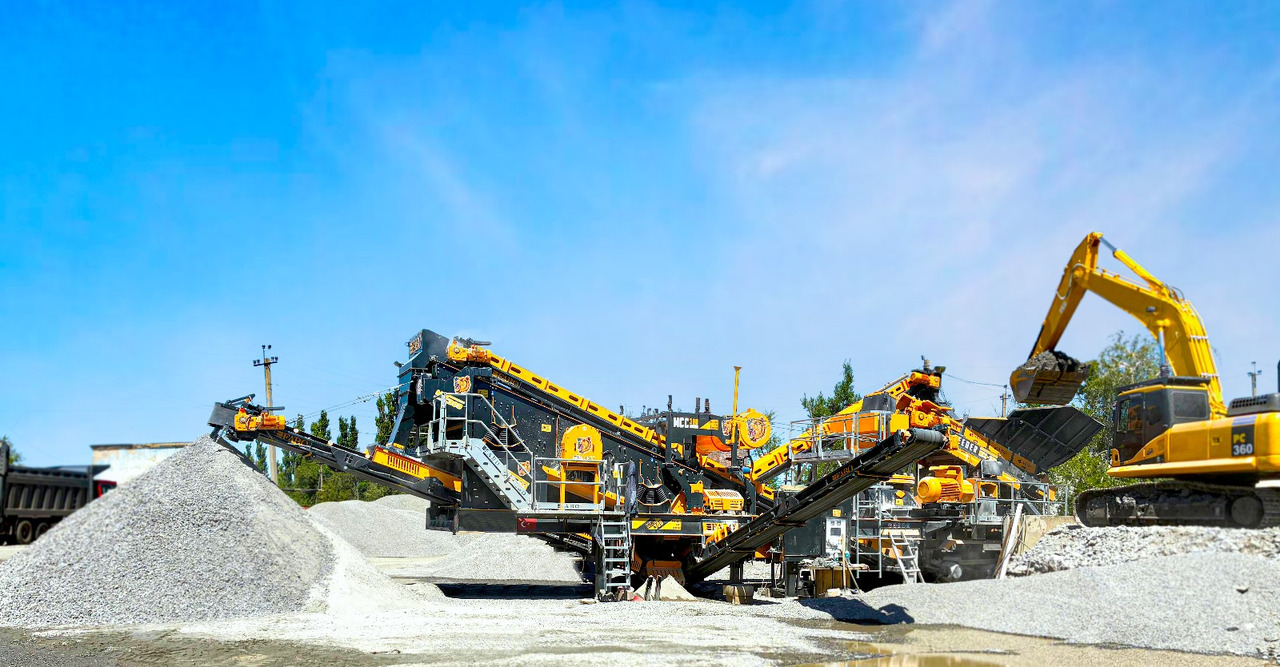

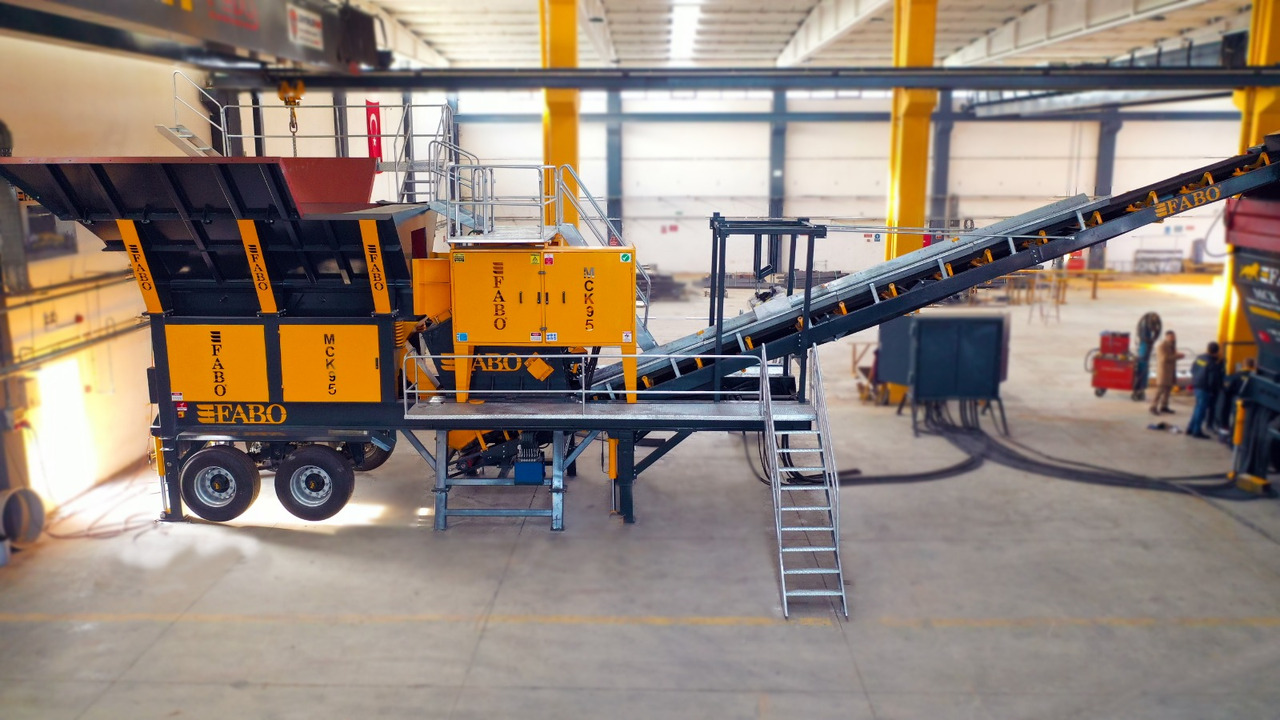

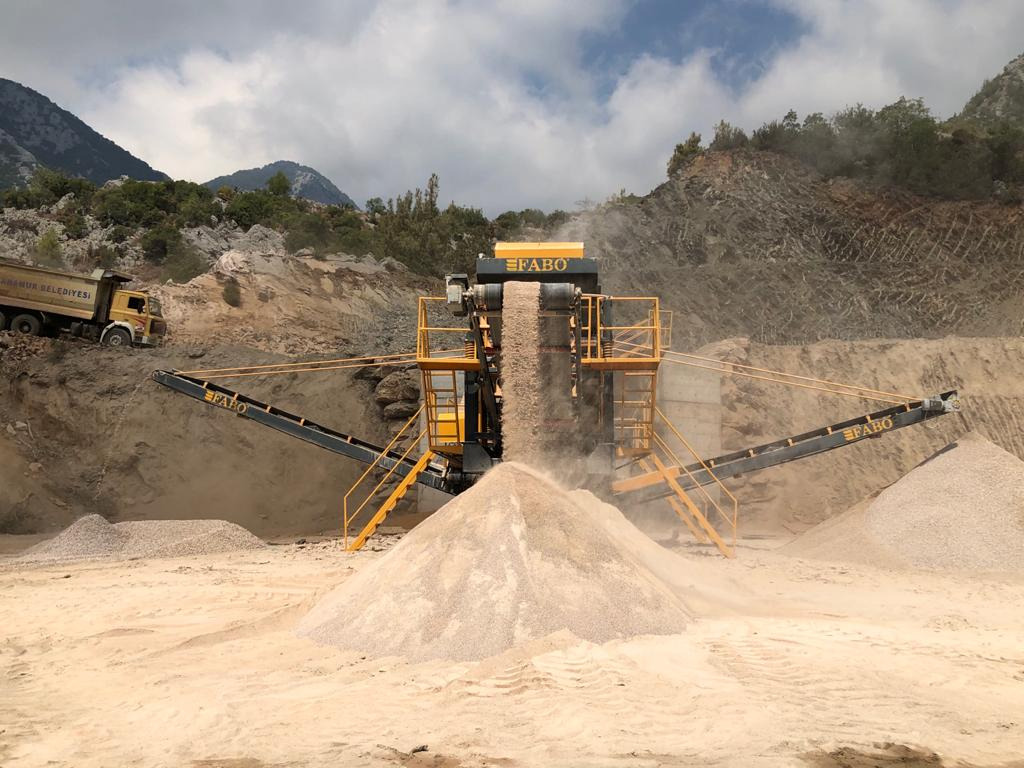

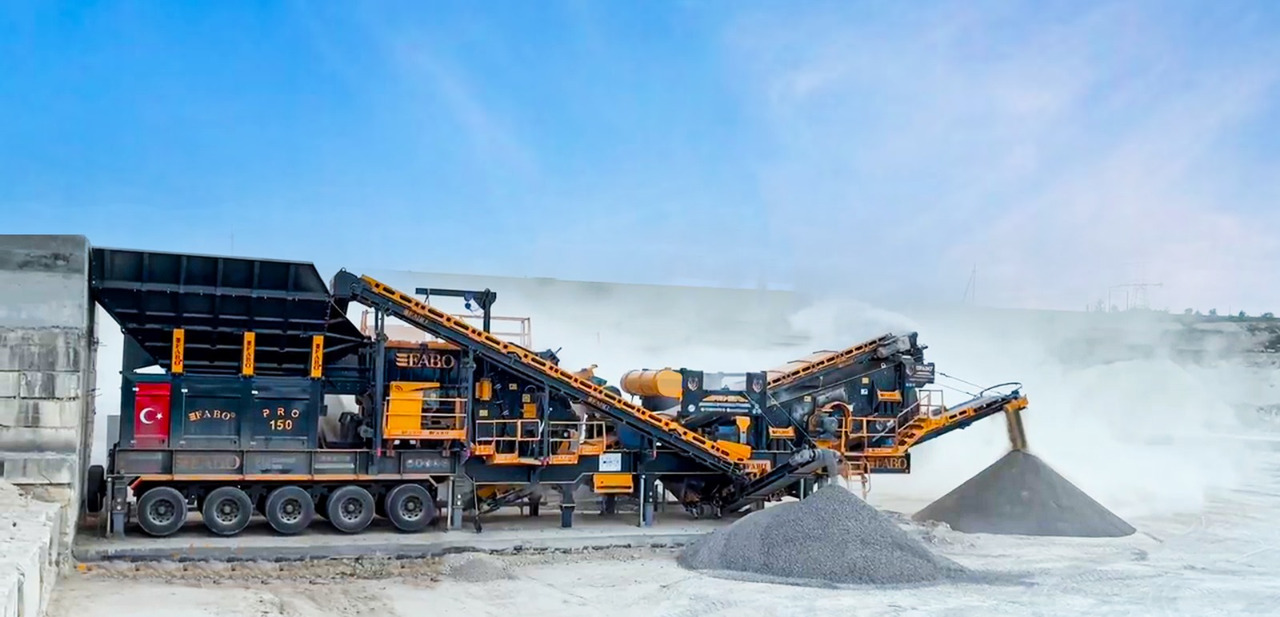

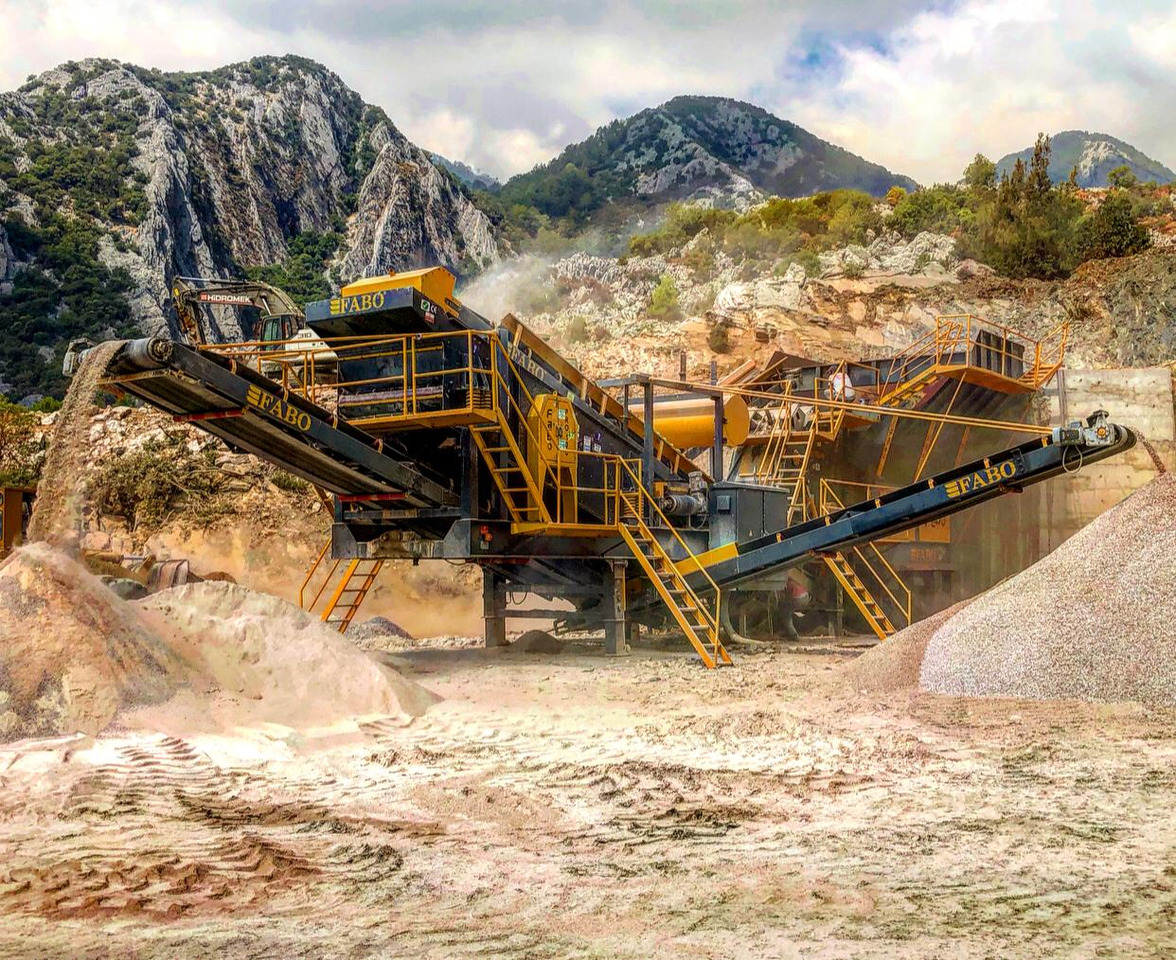

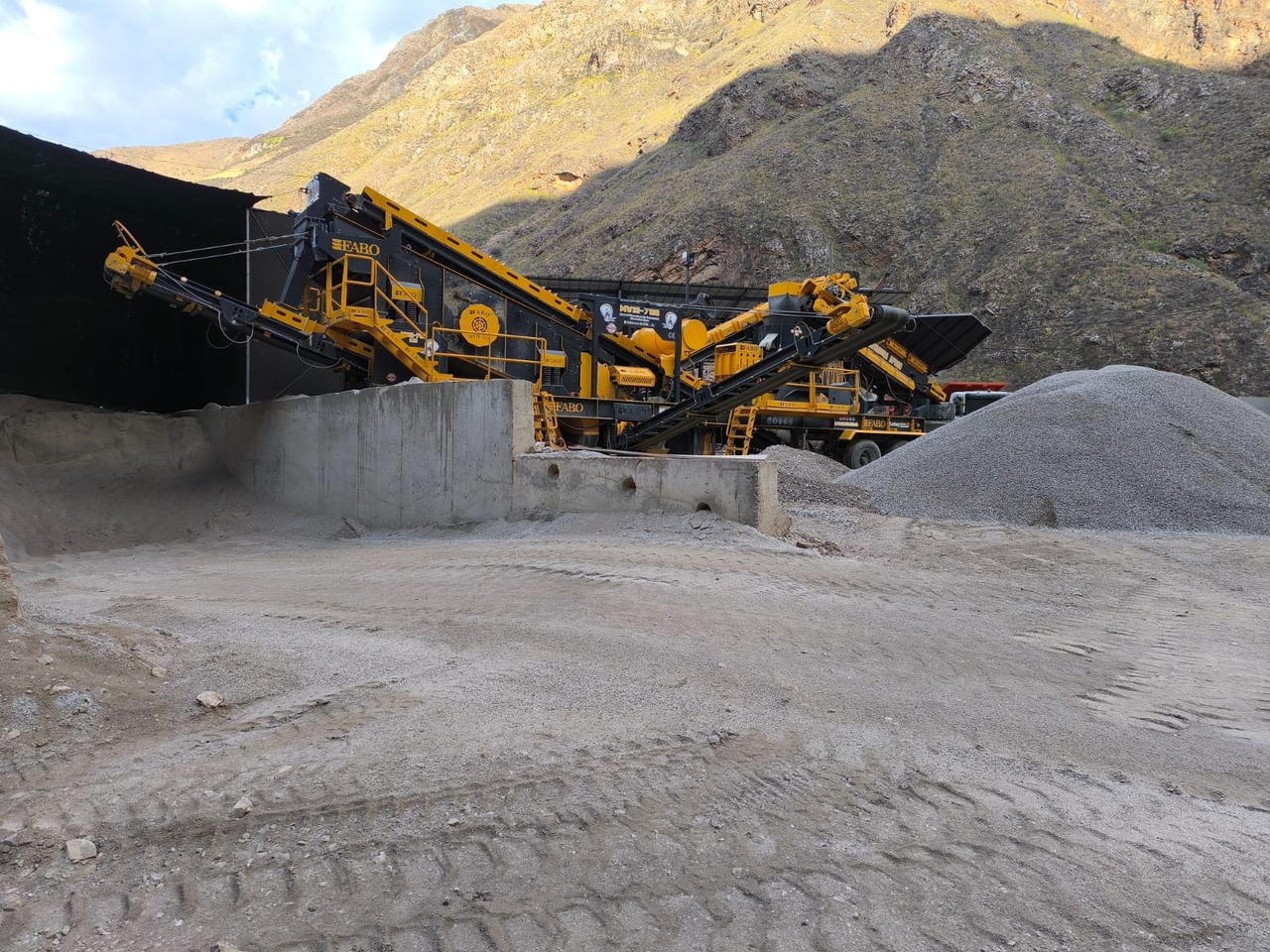

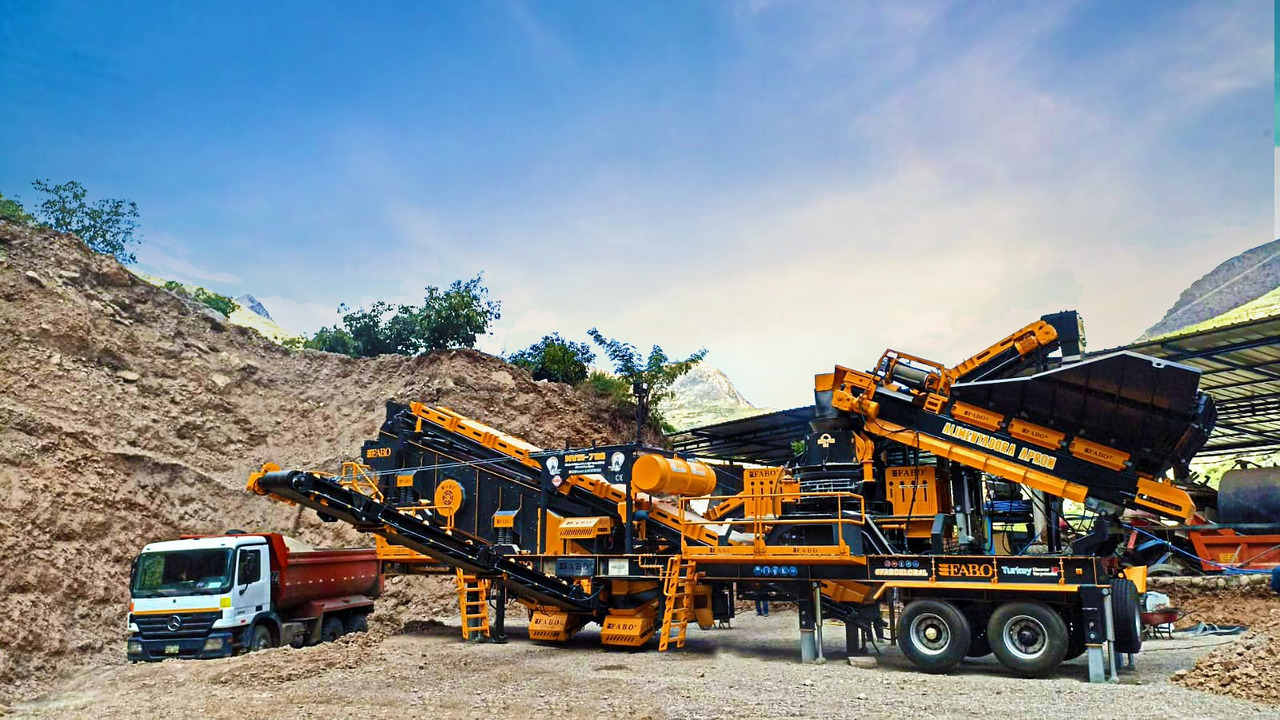

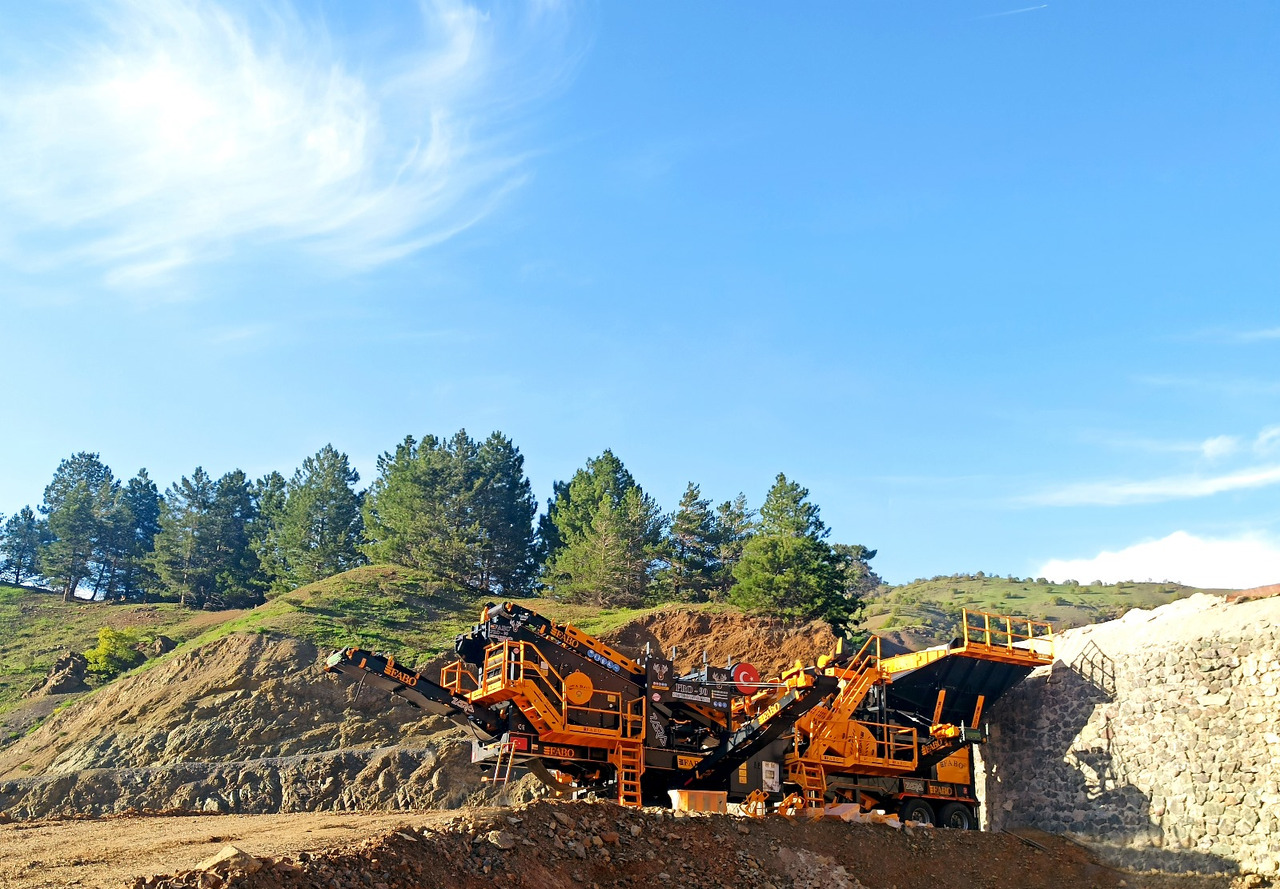

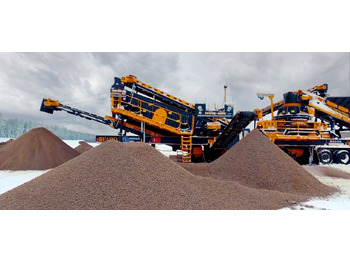

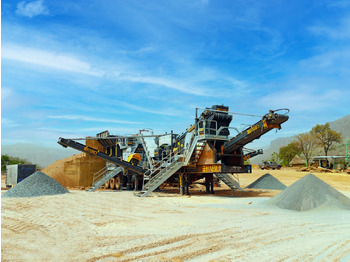

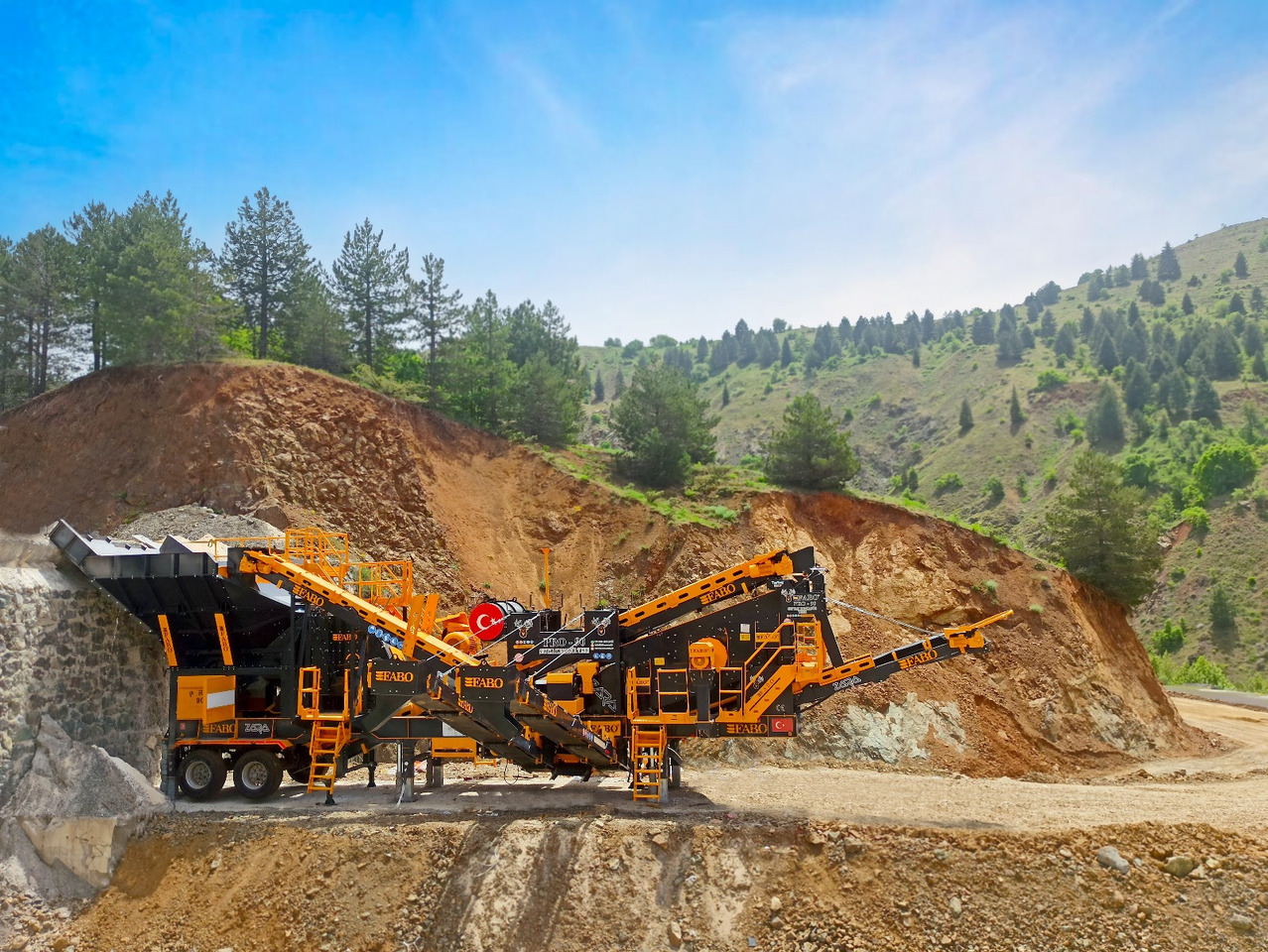

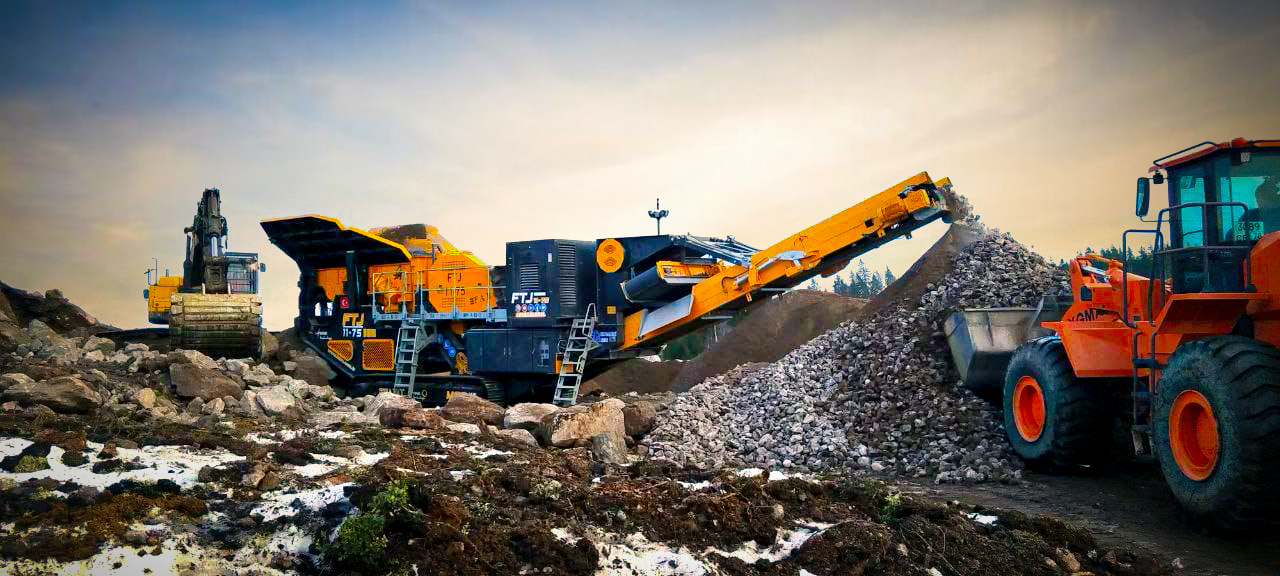

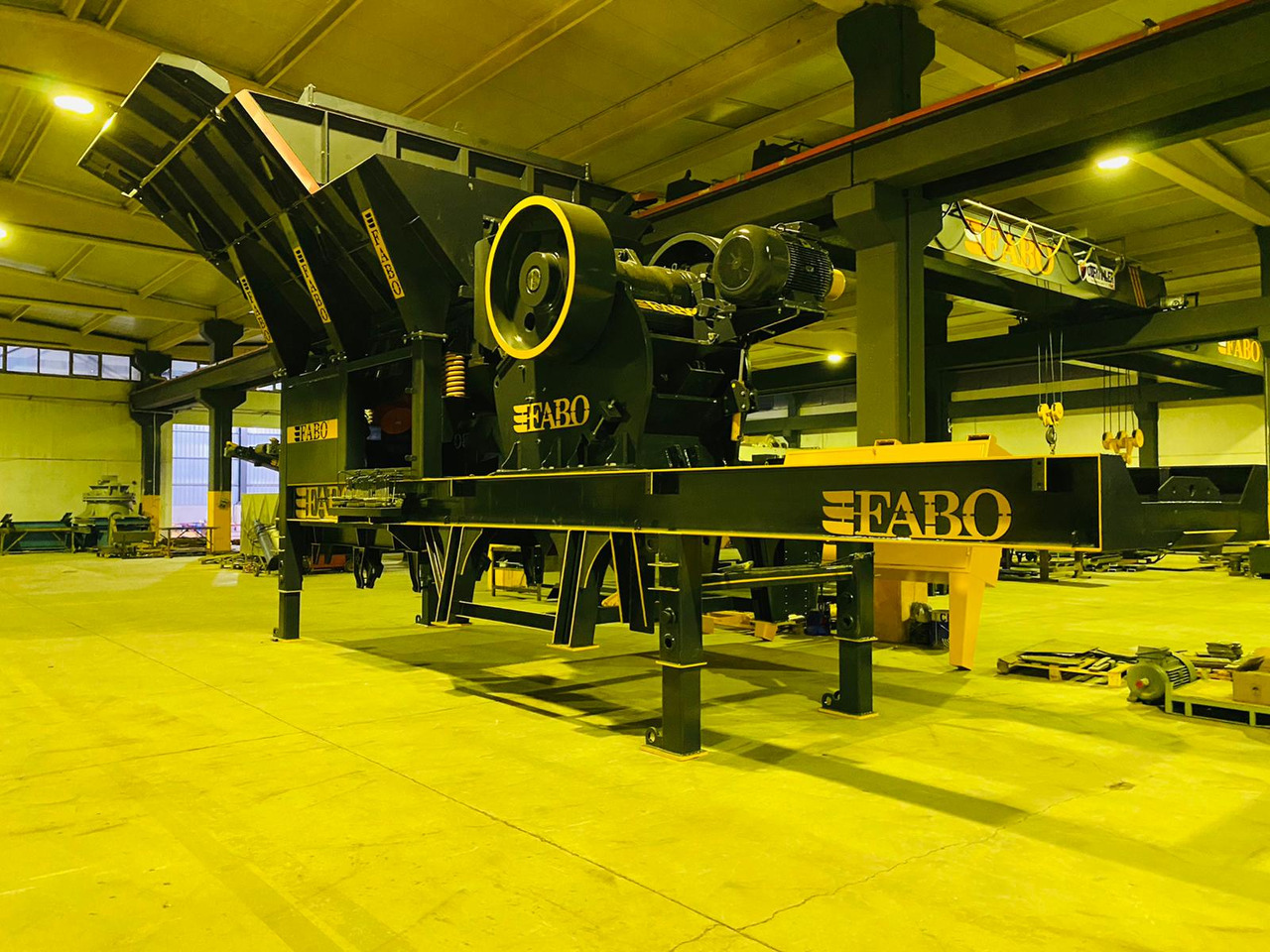

Nový Mobilní drtič FABO Mobile crusher

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

FABO MVSI Series are mobile type & closed circuit crushing and screening plant known as also sand making machine that is used for high percentage of cubical shape sand production purpose by processing hard materials such as basalt, granite etc.

MVSI Series includes one stage of crushing process that is made by a Vertical Shaft Impact Crusher which is capable to produce high percentage of sand with good cubical shape.

TECHNICAL SPECIFICATIONS:

-Bunker: 25m3

-Plant Dimensions: 18300x4680x4400 mm

-Production Capacity: 200-300 Tons Per Hour

-Crusher Type & Rotor Size: Vertical Shaft Impact Crusher – Ø 900 mm

-Maximum Feeding Size: 45 mm

-Vibrating Screen Size and Deck: 2000x5000 mm 1 deck

-Total Motor Power: 480 Kw

-Generator (optional): 600 kvA

MVSI-900 IS A COMBINATION OF:

• Hopper

• Vibrating Feeder

• VSI Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
