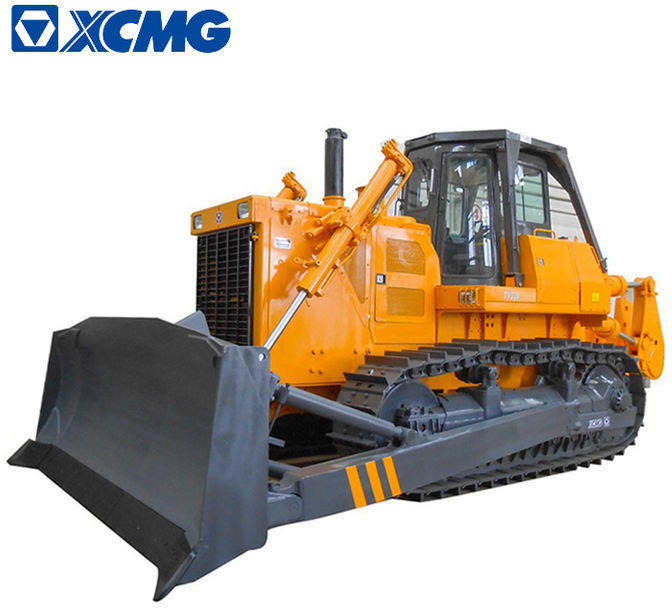

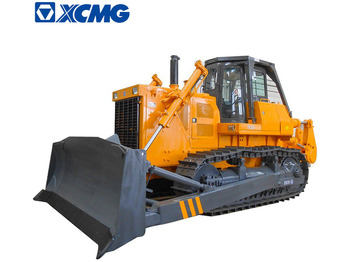

Nový Buldozer XCMG Official Ty160 160HP Small Mini Dozer Bulldozer

Brand Name: XCMG

Caterpillar center distance (mm): 1880

Production efficiency (m3/h): 350 30m distance

Maximum climbing performance (°): 30

Dimension(Long * Breadth * High): 5128*3416*3120mm

Model: Weichai WD10G178E25

Back speed (km/h): 4.03 R1

Three tooth looser tooth distance (mm): 950

Average ground specific pressure (MPa): 0.065

Hydraulic Pump Brand: Famous brand

The maximum depth of soil cutting blade (mm): 545

Straight shovel single shovel capacity (M3): 3.9

Hydraulic Valve Brand: Famous brand

Model Number: TY160

Machinery Test Report: Provided

Fuel consumption rate (g/kW.h): ≤210

Maximum traction power: 148kN

Minimum ground clearance (mm): 400

Maximum traction power (kN): 148

Forward speed (km/h): 3.1 F1

Name: Specifications Remarks

Video outgoing-inspection: Provided

Minimum turning radius: 3100mm

Crawler height (mm): 60

Number of single side pulley: 6 unilateral and 2 bilateral

Engine:

Place of Origin: Jiangsu, China

Pitch (mm): 203.2

Warranty: 1 Year

Number of wheels of single side belt: 2

The number of cylinder - bore * stroke (mm): 6－126×130

Rated speed (r/min): 1850

Type of soil looser: Three teeth

Working device:

The three tooth scarifier weight (kg): 1621

Hydraulic Cylinder Brand: Famous brand

Three tooth looser: 572 Soil depth (mm)

Minimum turning radius (mm): 3100

Moving Type: Crawler Bulldozer

Machine Weight: 17100 KG

Applicable Industries: Manufacturing Plant, Farms, Construction works

UNIQUE SELLING POINT: High operating efficiency

Walking system:

Rated power (kW): 131

Overall size of the machine（mm）: 5128×3416×3120 Straight shovel, traction rod

Maximum torque (N.m/r/min): 830/1000～1200

The maximum lifting height of the blade (mm): 1095

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

The use quality of the whole machine（kg）: 17100 Straight shovel, traction rod

Marketing Type: Ordinary Product

The maximum tilt blade height (mm): 860

Supply Ability: 1000 Unit/Units per Year

Showroom Location: United States, Brazil, India, Russia

Warranty of core components: 1 Year

type: Swing type and balance beam suspension structure

Dozing Capacity: 4m³

Tracked ground length (mm): 2430

PRICES: 1 - 4 units: $90,000.00,>= 5 units: $70,000.00

The TY160 bulldozer which has excellent power, reliability and a long service life. Through the introduction of bulldozer technology, at the same time absorb the advantages of D60A-8, The TY160 crawler type bulldozer has been developed by the domestic design. The TY160 bulldozer adapt Weichai diesel engine which provides an output of 131 kW 160HP with excellent productivity.Technical Characteristics:

• The appearance of the vehicle is based on optimization design.
• High engine power reserve, strong torque output, low fuel consumption, reliable controls.
• Hydraulically powered, automatic speed change, shift the gears without stop the vehicle.
• 3 elements, single stage and single phase torque convertor features high efficiency and capacity.
• The updated hexahedral cab features outstanding visibility and good tightness.
• Using the triangle spline and the gear of crowned teeth and tip relief in the final drive to average the loads on the trans-mission components for more stability, prolong the lifetime.
• New blade is more durable and capacious.
• Alarming & monitoring system is reliable.
