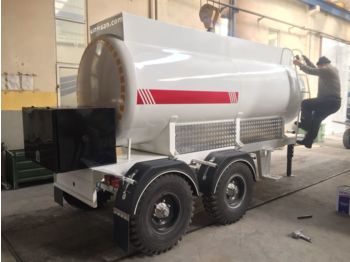

Nový Cisternový návěs pro dopravu paliva EMIRSAN 5000 Lt Truck Tank Trailer

Tanker walls: 4 mm Compartment walls: 4 mm End walls: 4 mm Pressure: 0.5 bar Test pressure: 0.5 bar Fillers: 2

---

5000 Lt Fuel Tanker Trailer Technical Specifications Structure: Main chassis of the trailer is made with U type beam with cross members There will be 2 pcs of loading manhole cover on top Outlet fittings will be 2 inch Fuel level bar indicator will be mounted Tank is made Tank is produced ST52 steel plates Tank will be welded with ARC robot welding outside and hand welding inside Electirical unloading gun will be mounted on the tank for unloading that will be connected to a 220 V electricity 2 pcs of breakewater will be used inside the tank Adjusted hole for for connecting to a truck Axles ; 6 bolts, 300x60 brake pads 1550 mm width Turkish brand 2x5 Ton axles with drum brakes Suspensions ; It is supplied with Turkish brand leaf spring Brake System ; Manual brake system will be used Electrical system ; Accuplated to tractor electric with 2 tail & stop combined lamps (red). It will ve 12V connection Tires; 4+1 Pieces 900x16 Turkish brand Landing Gear ; Turkish brand adjustable landing leg 1 pc Painting ; Before the painting, all surface are cleaned carefully Epoxy gray is used for first protecting. 2 Times of high quality paints are applied on trailer White color Accessories: Manual hydraulic jack
