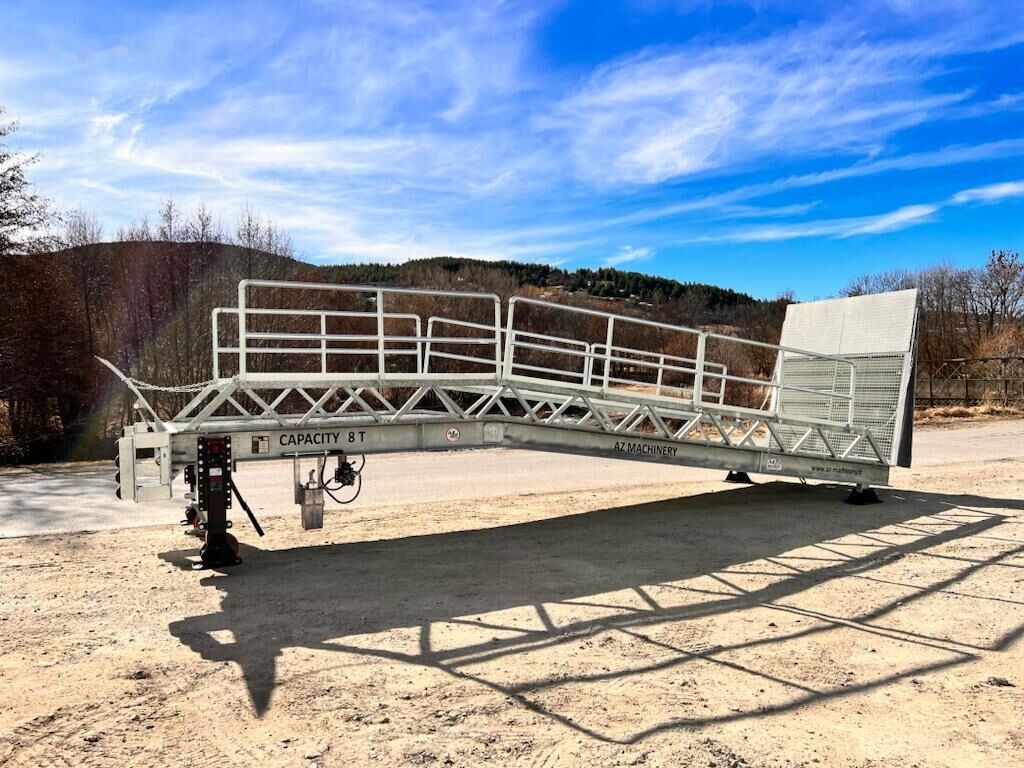

Nový Nájezdová rampa AZ-Machinery AZ RAMP-STAR 8 FULL GALVA-ZR-RL-FKS

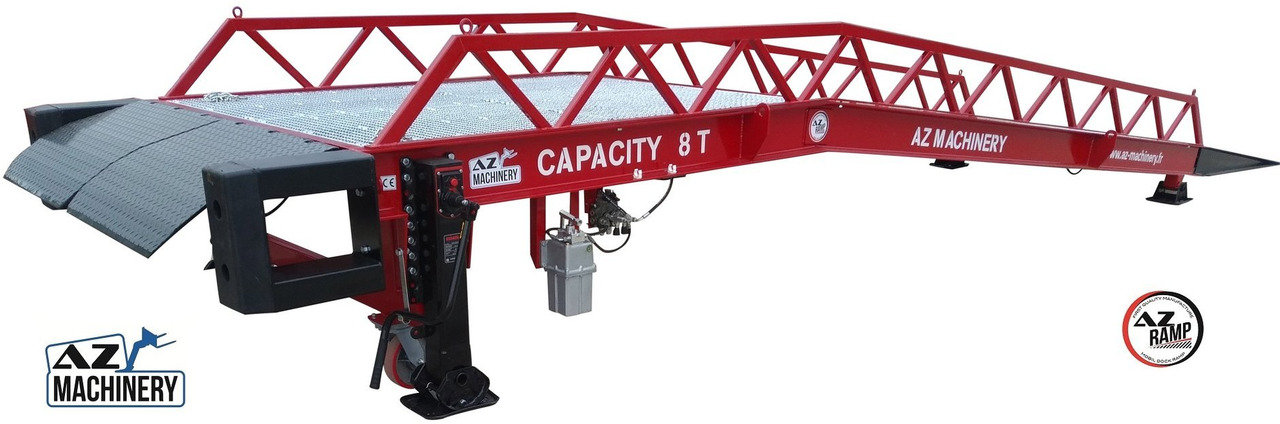

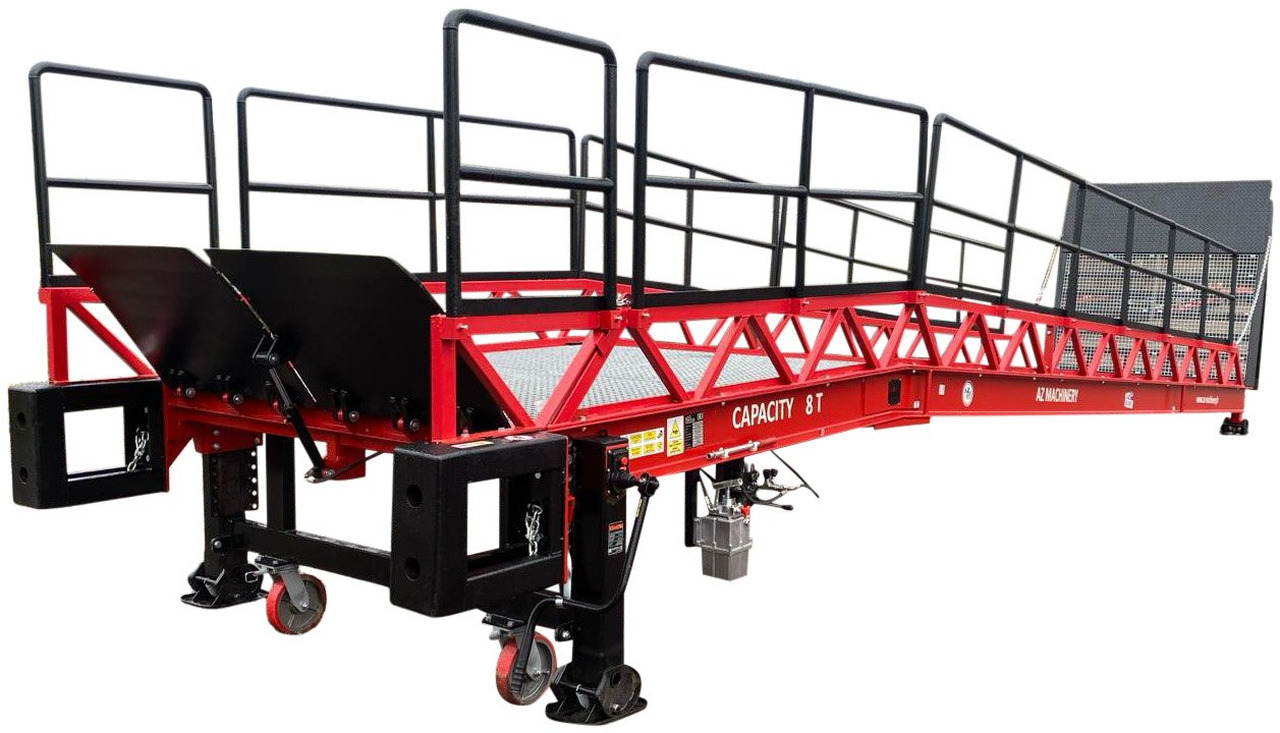

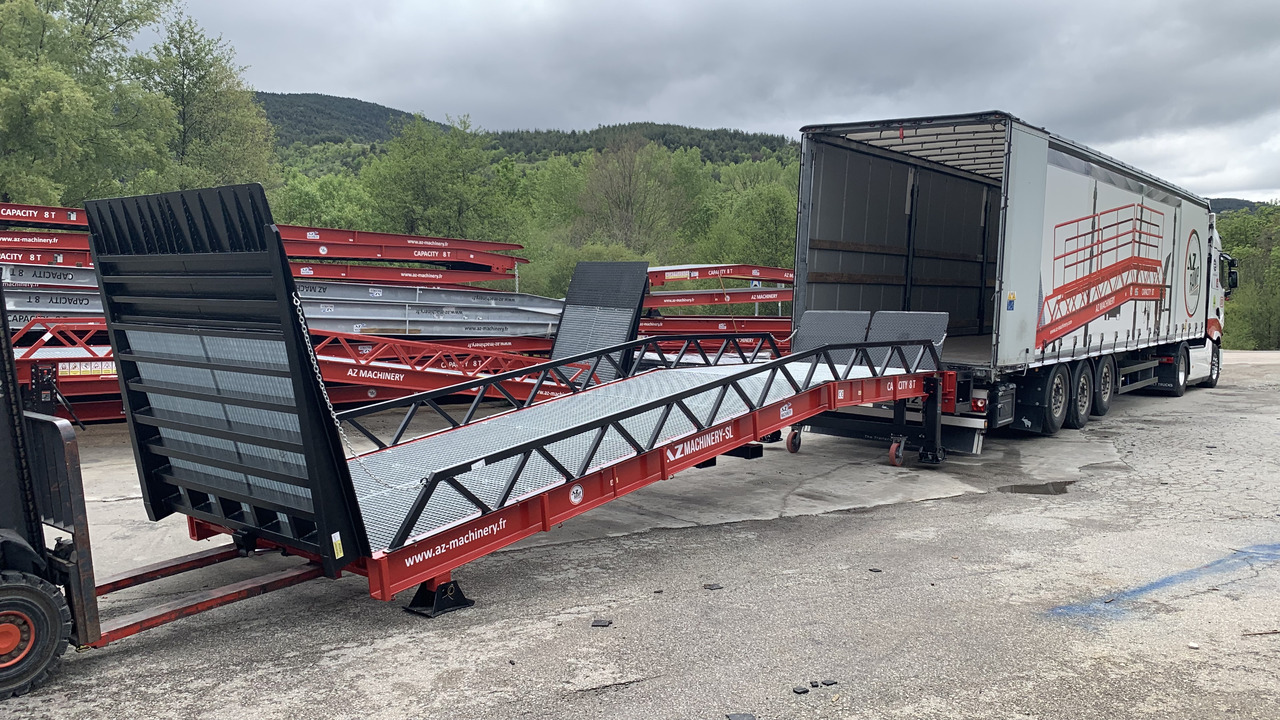

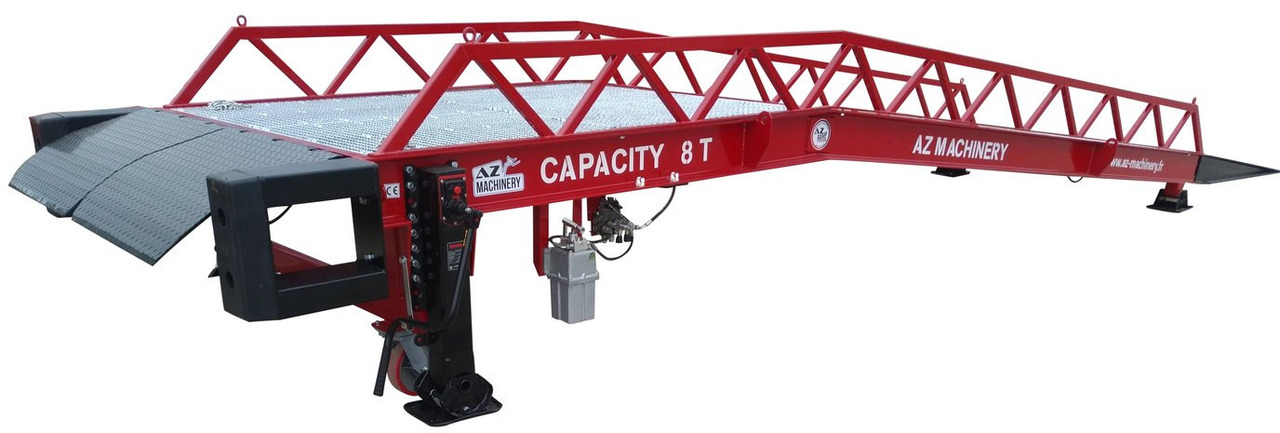

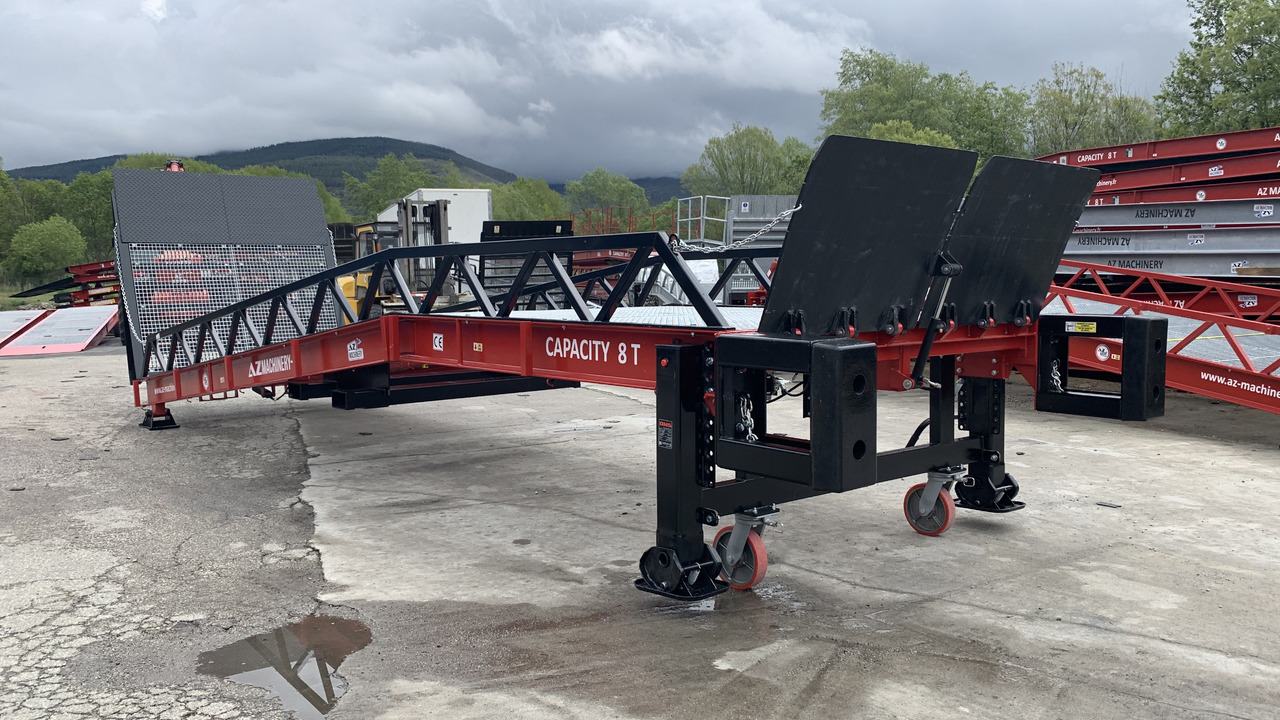

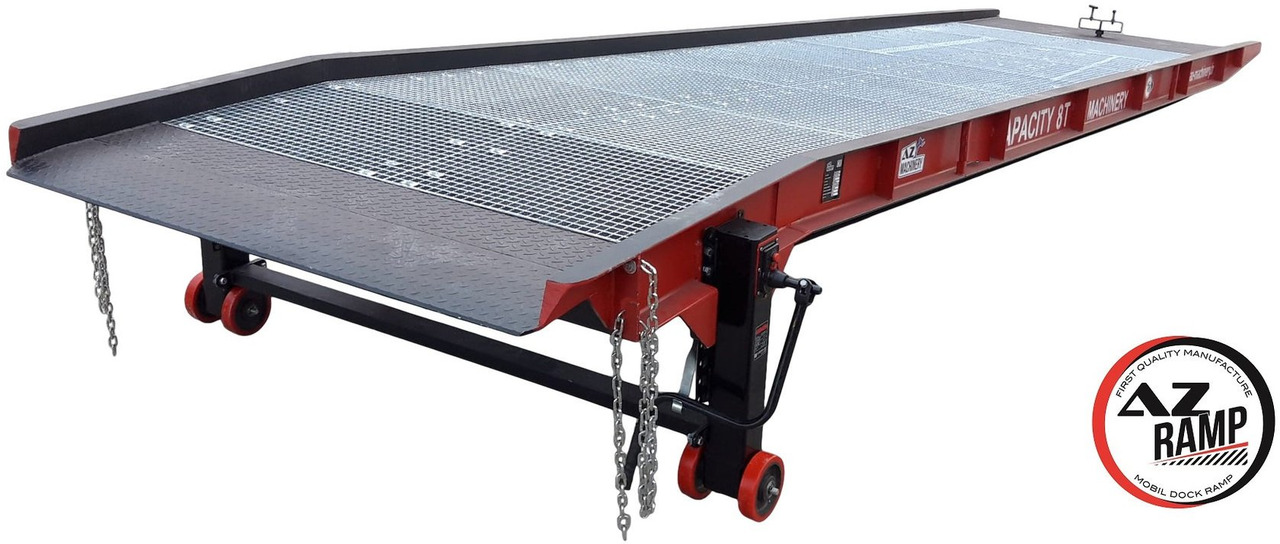

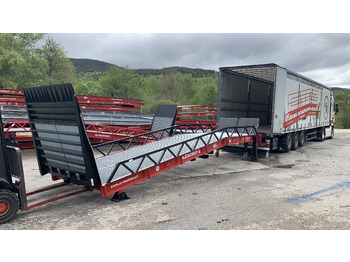

Mobile loading ramp STAR-8T from AZ RAMP - Available in stock immediately

Description:

Load and unload your goods safely and efficiently with the STAR-8T mobile loading ramp from AZ RAMP!

Capacity and dimensions:

Load capacity: 8 000 Kg - ideal for 3 and 4 wheel forklifts

Total deployed length: 10.55 m

Total width: 2.07 m

Useful width: 1.96 m

Flexible dimensions: 3.31 m horizontal platform and 2.10 m entry platform

Versatility and safety:

Adjustable lifting height: from 1.00 m to 1.60 m to adapt to different loading docks, trucks, and wagons.

Adjustable slope: from 16.5% to 22.37% for safe ascent and descent

Hydraulically folding entry platform and exit lips: for fast and effortless loading and unloading

Removable side safety rails: 35 cm high for optimum protection

Non-slip rolling surface: in hot-dip galvanized grating, 40 mm thick for better grip

4 support feet with adaptive heads: for maximum stability

2 lashing chains included: to secure your load

Applications:

Logistics and industry: ideal solution for warehouses, factories, and distribution platforms

Forklift training centers: meets the requirements of the new RECO R.489 for categories 1 and 3

Advantages:

Robust and durable: designed for intensive use

Easy to use: hydraulic system for effortless lifting and lowering

Safe: numerous safety features for use with confidence

Versatile: adapts to different types of vehicles and loading docks

Compliant with standards: meets current safety requirements

Get the best loading solution with the STAR-8T mobile ramp from AZ RAMP!

Product advantages:

Available in stock

8 000 Kg load capacity

Versatility and adaptability

Optimum safety

Ease of use

Robustness and durability

CE standards compliance

ISO 9000-9001 certification

Standard equipment included:

Full hot dip galvanization

Transverse fork sleeves

1.20 m side safety railings

500 mm buffer zone with integrated dock bumpers

Do you have any questions or need more information?

Please do not hesitate to contact us!

We are happy to help you find the right loading solution for your needs.
